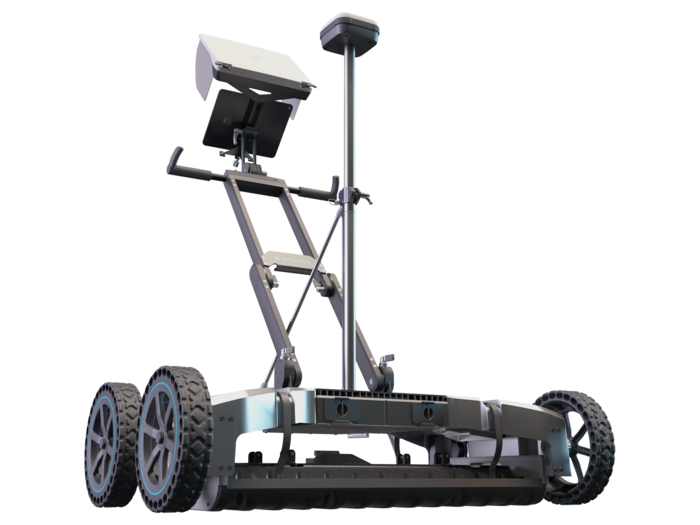

GS9000 The most efficient multichannel GPR system with real-time 3D visualization
GS9000
GS9000
GS9000
GS9000
GS9000

Subsurface Mapping GPR

GS9000

The most efficient multichannel GPR system with real-time 3D visualization

  • Interchangeable GPR arrays covering a vast array of applications
  • Get an accurate 3D map of the underground, literally, as you walk
  • Get the most powerful insights from your data, anytime, anywhere

Applications:

Damage prevention / Excavation safety / Utility locating & mapping / Subsurface utility engineering (SUE) / Surveying & Reality Capture / Road inspection / Bridge inspection / Geophysical investigations / Archaeology / Forensics & UXO / Precision Agriculture

...or add to quote-cart
Videothumbnail GS9000
Modular sensors. Highest data quality. Powerful 3D software. 100% real-time. Intuitive for all.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Versatility.svg
Versatility
Two interchangeable array modules, one vast array of applications. Enjoy the interoperability of the most versatile multichannel GPR subsurface mapper.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_Accuracy.svg
Accuracy
Best-in-class GPR & geospatial technology for the highest density of information across all three dimensions, accurately mapped in your local coordinates.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_User%20Experience.svg
Efficiency
Easy to set up and operate. On-the-fly data visualization to avoid any interpretation errors in the field. Instantly ready for advanced analysis, even remotely.
SWISS MADE_horizontal lockup.svg
Software for Proceq GPR Subsurface App
Proceq GPR Subsurface App
Tech Specs
Field Methodology
Free Path
Superline
Live Image Processing
Time Slice View (georeferenced)
Hilbert migration
Depth range adjustment
Dynamic Gain / Manual Gain
Sensitivity filter
Background removal filter
Noise cancellation filter
Frequency filter
Live Display Options
Satellite imagery
GNSS trajectory
CAD object layers
Spectral / seismic color palettes
On-site Annotations
Tags
Points of interest
Photos
Voice markers
Markups
Linework
Field Calibration
Odometer calibration
Velocity by hyperbola fitting
Velocity for multiple layers
Cloud Services
Live data synchronization to Workspace⁹
Permanent data storage
Raw data export to SEG-Y
Instant CAD / SHP / KML generation
Instant report generation
Share via url
Coordinate System
EPSG global database
Local grid models
Geoid models
Languages
English
Spanish
French
German
Italian
Chinese
Japanese
Korean
Display unit
Any iPad® or iPad Pro® ¹
Recommended: iPad Pro WiFi + Cellular
Screen resolution: up to 2732 x 2048 pixels
Storage capacity: up to 2 TB

iPad is a trademark of Apple Inc.; iOS is a registered trademark of Cisco in the US and is used by Apple under license

GS9000 Tech Specs
Instrument
Tech Specs
Radar technology
Stepped-frequency GPR
Modulated frequency range
500 – 3000 MHz ² | 30 – 750 MHz ³
Number of channels
35 (VV) + 15 (HH) ² | 11 (VV) ³
Channel spacing
2.5 cm (VV), 5.5 cm (HH) ² | 7.5 cm ³
Scan width
0.85 m ² | 0.82 m ³
Scan rate
27500 scans/s ² | 22000 scans/s ³
Time window
45 ns ² | 130 ns ³
Spatial interval
Up to 100 scans/m
Dimensions
722 x 1178 x 443 mm
Weight
45 Kg ²
Wheel encoders
2, on rear wheels
Ingress protection (IP) / sealing
IP65
Power consumption
Off-the-shelf power bank ⁴
Autonomy
6 hours | Hot-swappable ⁵
Operating temperature
-10° to 50°C | 14° to 122° F
Operating humidity
<95% RH, non-condensing
Connectivity
WiFi, USB-A, USB-C, Lemo ⁶
GNSS satellites
Multiband GPS + Glonass + Galileo + Beidou
GNSS real-time corrections
SSR augmentation / NRTK-compatible ⁷
GNSS real-time 3D accuracy
Typ. 1 - 5 cm | 0.5 - 2 in ⁸
GNSS initialization time
Typ. 5 - 30 s

1. Running an up-to-date iOS version; recommended models: iPad Pro® WiFi + Cellular (2022 model or superior)
2. In combination with GX1 array module
3. In combination with GX2 array module
4. USB-C power bank with Power Delivery. Max. dimensions: W 85mm x H 28mm (recommended power: 12/15/20V - >45 W)
5. Using 2x 26,800 mAh power banks
6. For terrestrial positioning systems, an intermediate serial adapter to DB9 might be needed to output Pseudo NMEA GGA positions
7. Needs an active Internet connection on the iPad; SSR service available in Europe, USA, southern Canada, southeastern Australia and South Korea / NRTK corrections via NTRIP in RTCM3 format
8. Via NTRIP RTK or SSR corrections; the achieved accuracy is subject to atmospheric conditions, satellite geometry, observation time, etc.
9. Up to 1 TB of personal space per user ID



PDF Version
