Equotip enables portable hardness inspection of almost any object, polished parts and heat-treated surfaces. The hardness measurements are made by using the dynamic rebound testing method according to Leeb, the static Portable Rockwell hardness test and the Ultrasonic Contact Impedance (UCI) method. The rugged Swiss-made metal NDT hardness testers are designed for portable hardness testing in the lab, in the workshop, at production facilities or on site. Equotip Live is the latest innovation featuring a wireless impact device, mobile app, real-time data sharing and cloud backup.





Inventors of the Leeb Hardness Testing Principle in 1975

Since Proceq invented the Leeb hardness test principle in 1975, Equotip has become established as a globally recognized brand for portable hardness testing and a de facto industry standard. A wide range of different impact devices, as well as a comprehensive selection of test blocks and accessories cover most applications.



Leeb HL (Leeb)


Heavy parts

UCI


Welds / HAZ

Rockwell


Small parts

Equotip Piccolo 2 / Bambino 2
D, DL--
Equotip Live Leeb Equotip Live UCI
D3-in-1
(HV 1, HV 5 & HV 10)		-
Equotip 550 Portable Ecosystem (w/ corresponding probe/impact device)
C, D, DC, DL, E, G, S3-in-1
(HV 1, HV 5 & HV 10)		50 N (10 N + 40 N)





The Equotip Ultra-portable Devices

Enhanced portability and multiple uses make these portable Equotip solutions the ideal entry alternative that fits the palm of your hand. Covering many use cases and even enabling Workspace App data sharing in the case of the Equotip LIVE Leeb and UCI.

Equotip Live

UCI

Learn more

Equotip Live

Leeb

Learn more

Equotip Piccolo 2 /

Bambino 2

Learn more

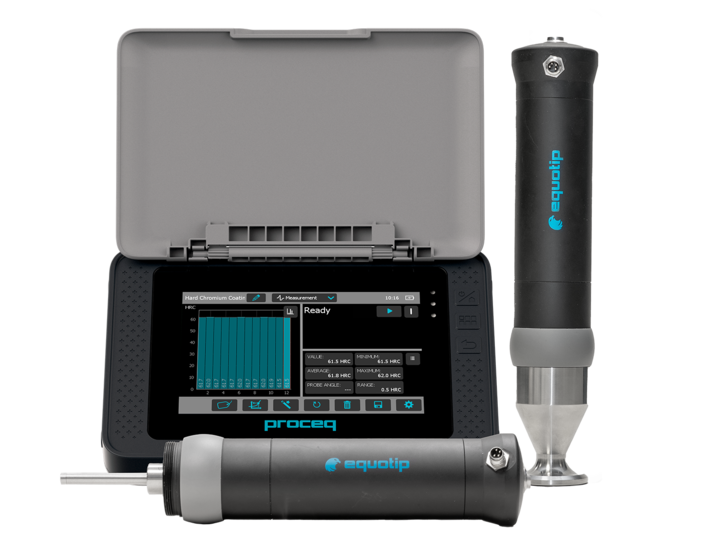

The Equotip 550 Ecosystem

The portable top-notch hardness testing ecosystem with the most comprehensive coverage of hardness testing applications compatible with all our Leeb, UCI & Rockwell probes and matching accessories.



Pick From Our Top Sellers

Equotip 550

Leeb

For on-site testing of heavy, large or installed parts

Learn more

Equotip 550

UCI

For fine-grained material and heat-treated surfaces

Learn more

Equotip 550
Portable Rockwell

For scratch-sensitive, polished and thin parts

Learn more

or...





Configure & Customize

Configure and customize the Equotip 550 ecosystem and cover as many applications as you wish by selecting all the specific probes that are suitable for the each application

1

The Portable Equotip 550




Measuring Performance

High accuracy
Custom conversions
Combined methods

Powerful Hardware

Rugged housing
High capacity battery
Versatile connectivity

Easy to use

Large touchscreen
Personalized views
Custom reports

Portable hardness testers

Leeb
Rockwell
UCI

Equotip 550
Portable Hardness
356 10 001

Add to cart





2

Add Your Equotip 550 Compatible Hardness Testers


Main scope of application Most commonly used probe. For the majority of applications. Narrow indenter (probe) tip for measurement on hard reach areas or spaces with limited access. Restricted areas Large and heavy components, e.g. casts and forged parts. For surface hardened components, coatings, thin or impact-sensitive parts. For measurements in extreme hardness ranges. Tool steels with high carbide content. For measurements in extreme hardness ranges. Tool steels with a high carbide content. Very universal. Widely used for heat-treated surfaces,weld inspection. Can measure very thin and light samples without mass restriction.
Probe 356 00 100
Leeb D Impact Device		 356 00 120
Leeb DL Impact Device		 356 00 110
Leeb DC Impact Device		 356 00 300
Leeb G Impact Device		 356 00 500
Leeb C Impact Device		 356 00 400
Leeb E Impact Device		 356 00 200
Leeb S Impact Device		 356 00 800
UCI 3-in-1 Probe HV1-HV10		 356 00 600
Portable Rockwell Probe 50N
Conversion scales HB, HV, HRA, HRB, HRC, HS, MPA (σ1, σ2, σ3) HLD, HB, HRC, HRA, HRB, HR15N, HR15T MPA (σ1, σ2, σ3) HLD, HV, HB, HRA, HRB, HRC, HR15N, MPA (σ1, σ2, σ3)
Measurement range 150-950 HLD 640 - 950 HLDL 150-950 HLDC 295-760 HLG 300-980 HLC 290-930 HLE 300-920 HLS 20-2000 HV 10-100 mm, 19-70 HRC
Indenter Tungsten Carbide Polycristalline diamond Silicon Nitride ISO 6507-2 compliant, 136° Vickers diamond ASTM E3246 and DIN50157 compliant, 100°diamond
Impact energy / Test force 11 Nmm 90 Nmm 3 Nmm 11 Nmm 11 Nmm HV1 (9.8 N), HV5 (49 N), HV10 (98N) in one probe 50 N (10N + 40 N)
Accredited calibration ISO/IEC 17025
Standard compliance ASTM A956 DIN EN ISO 16859 GB/T 17394 JB/T 9378 ASTM A1038 DIN 50159 GB/T 34205 ASTM A3246 DIN 50157
Measurement resolution 1 HLD 1 HLDL 1 HLDC 1 HLG 1 HLC 1 HLE 1 HLS 1 HV(UCI), 0.1 HRC 0.1 μm; 0.1 HRC; 1 HV
Measuring accuracy ± 4 HLx (0.5% @850 HLx) ± 2% ± 0.8 μm; ~ ± 1.0 HRC
Measurement deviation (E) Lower than DIN EN ISO 16859 Lower than DIN 50159 and GB/T 34205 Lower than DIN 50157 and ASTM E3246
Coefficient of variation (R) Lower than DIN EN ISO 16859 Lower than DIN 50159 and GB/T 34205 Lower than DIN 50157 and ASTM E3246
  Add to cart Add to cart Add to cart Add to cart Add to cart Add to cart Add to cart Add to cart Add to cart



3

Add Your Accessories, Test Blocks & Calibrations

  Accessories
Equotip Leeb Accessories
353 03 000 Set of Support Rings Add to cart
356 00 080 Equotip Impact Device Cable 1.5 m (5 ft) Add to cart
353 00 086 Equotip Impact Device Cable 5 m (15 ft) Add to cart
Equotip UCI Accessories
356 00 720 Equotip UCI Special Foot Add to cart
Equotip Portable Rockwell Accessories
354 01 200 Equotip Portable Rockwell Measuring Clamp Add to cart
354 01 130 Equotip Portable Rockwell Tripod Add to cart
354 01 250 Equotip Portable Rockwell Special Foot RZ 18 - 70 Add to cart
354 01 253 Equotip Portable Rockwell Special Foot RZ 70 - ∞ Add to cart
354 01 243 Equotip Portable Rockwell support Z2 for measuring clamp Add to cart
354 01 229 Equotip Portable Rockwell Support Z4+28 for measuring clamp (for tubes and pipes over Ø 28 mm) Add to cart
354 01 228 Equotip Portable Rockwell support Z4 for measuring clamp (for tubes and pipes up to Ø 28 mm) Add to cart

  Test Blocks
Equotip Leeb Test Blocks Calibrations
357 11 500 Equotip Test Block C, ~565 HLC / <220 HB Add to cart
357 12 500 Equotip Test Block C, ~665 HLC / ~325 HB Add to cart
357 13 500 Equotip Test Block C, ~835 HLC / ~56 HRC Add to cart
357 11 100 Equotip Test Block D/DC, <500 HLD / <220 HB Add to cart
357 12 100 Equotip Test Block D/DC, ~600 HLD / ~325 HB Add to cart
357 13 100 Equotip Test Block D/DC, ~775 HLD / ~56 HRC Add to cart
357 13 105 Equotip Test Block D/DC, ~775 HLD, one side Add to cart
357 11 120 Equotip Test Block DL, <710 HLDL / <220 HB Add to cart
357 12 120 Equotip Test Block DL, ~780 HLDL /~325 HB Add to cart
357 13 120 Equotip Test Block DL, ~890 HLDL / ~56 HRC Add to cart
357 13 400 Equotip Test Block E, ~740 HLE / ~56 HRC Add to cart
357 14 400 Equotip Test Block E, ~810 HLE / ~63 HRC Add to cart
357 31 300 Equotip Test Block G, <450 HLG / <200 HB Add to cart
357 32 300 Equotip Test Block G, ~570 HLG / ~340 HB Add to cart
357 13 200 Equotip Test Block S, ~815 HLS / ~56 HRC Add to cart
357 14 200 Equotip Test Block S, ~875 HLS / ~63 HRC Add to cart
Equotip Portable Rockwell Test Blocks
357 41 100 Equotip Portable Rockwell Test Block
~20 HRC, ISO 6508-3 HRC Calibration		 Add to cart
357 42 100 Equotip Portable Rockwell Test Block
~45 HRC, ISO 6508-3 HRC Calibration		 Add to cart
357 44 100 Equotip Portable Rockwell Test Block
~62 HRC, ISO 6508-3 HRC Calibration		 Add to cart
Equotip UCI Test Blocks
357 51 200 Equotip UCI Test Block
~300HV, ISO 6507-3 HV10 Calibration		 Add to cart
357 52 200 Equotip UCI Test Block ~550HV, ISO 6507-3 HV10 Calibration Add to cart
357 54 200 Equotip UCI Test Block ~850HV, ISO 6507-3 HV10 Calibration Add to cart

  Additional Test Block Calibrations
Factory Calibrations
357 10 109 Equotip Leeb Test Block Additional Calibration HLD / HLDC Add to cart
357 10 129 Equotip Leeb Test Block Additional Calibration HLDL Add to cart
357 10 209 Equotip Leeb Test Block Additional Calibration HLS Add to cart
357 10 409 Equotip Leeb Test Block Additional Calibration HLE Add to cart
357 10 509 Equotip Leeb Test Block Additional Calibration HLC Add to cart
357 30 309 Equotip Leeb Test Block Additional Calibration HLG Add to cart
Portable Rockwell By Accredited Institutes
357 90 918 Equotip Portable Rockwell Test Block Additional Calibration HB (ISO 6506-3) Add to cart
357 90 928 Equotip Portable Rockwell Test Block Additional Calibration HV (ISO 6507-3) Add to cart
Leeb By Accredited Institutes
357 90 909 Equotip Leeb Test Block Additional Calibration HL (DIN 50156-3) Add to cart
357 90 919 Equotip Leeb Test Block Additional Calibration HB (ISO 6506-3) Add to cart
357 90 929 Equotip Leeb Test Block Additional Calibration HV (ISO 6507-3) Add to cart
357 90 939 Equotip Leeb Test Block Additional Calibration HR (ISO 6508-3) Add to cart
UCI By Accredited Institutes
357 90 940 Equotip UCI Test Block Additional Calibration HB, ISO 6506-3, one side Add to cart
357 90 941 Equotip UCI Test Block Additional Calibration HR, ISO 6508-3, one side Add to cart
357 52 100 Equotip UCI Test Block ~550HV, ISO 6507-3 HV5 Calibration Add to cart
